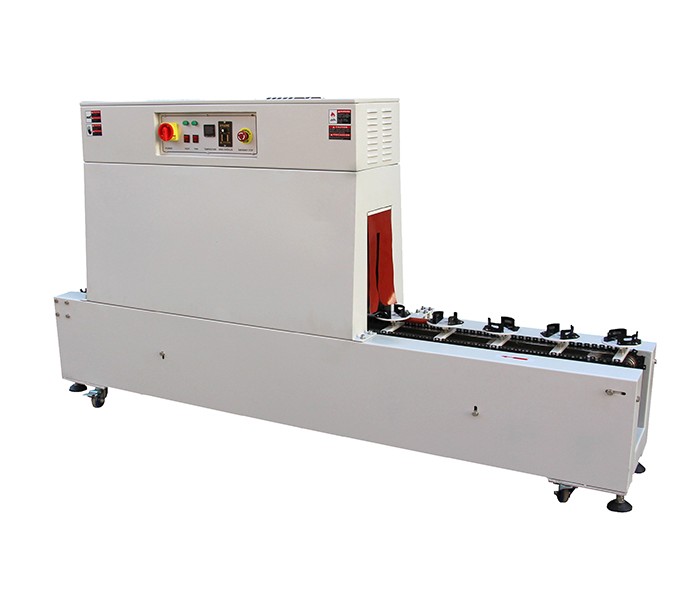

Sleeve Label Rotatable Shrink Tunnel

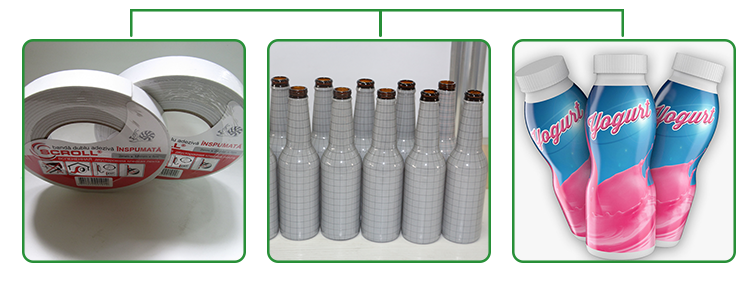

- T1230R Semi-auto Sleeve Label Shrink Tunnel ismainly for bottle shaped, jars, goblet product labelsshrink which can shrink the bottle neck, body, bottomand overall;
- The frequency inverter controls transmission speed and has variable speed;
- The shrinking temperature is intelligently controlled bdigital temperature controller and can be adjusted;
| Model | T1230R |
| Power | 12kw |
| Power Supply | AC 380V 3PH 50Hz |
| Max Packing Size Dia.×H | 120×300mm |
| Tunnel Chamber Size L×W×H | 1250×200×400mm |
| Packing Speed | 20-40m/min |
| Shrink Temperature | 0-300℃ |
| Applicable Shrink Film | PET/PVC |

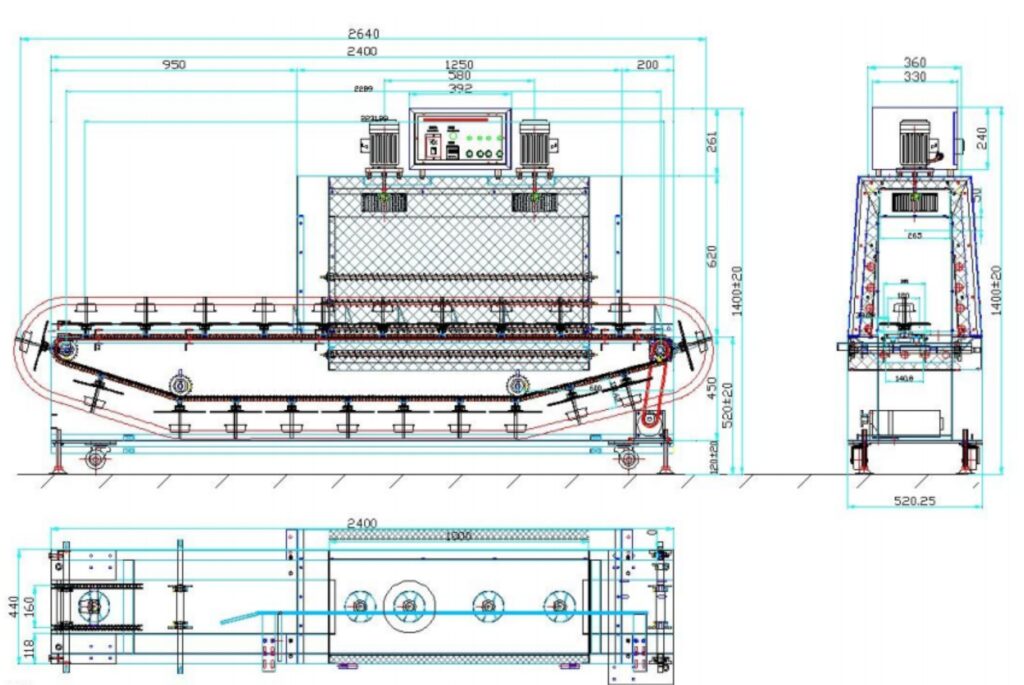

| Machine Size L×W×H | 2640×520×1400mm |
| Crate Size L×W×H | 2690×570×1550mm |
| Conveyor Height | 520±50mm |
| G./N. Weight | 380/350kgs |
- T1230R Semi-auto Sleeve Label Shrink Tunnel is mainly for bottle shaped, jars, goblet product labels shrink which can shrink the bottle neck, body, bottom and overall;
- The frequency inverter controls transmission speed and has variable speed;
- The shrinking temperature is intelligently controlled by digital temperature controller and can be adjusted;
- The unique puck can rotate 360 degrees to ensure smooth transportation.langing the molds;
- The bottle nipping stations can be adjusted without chAdopt double hot air circulation system;
- It is widely used in food, pharmaceuticals, cosmetics and other industries
