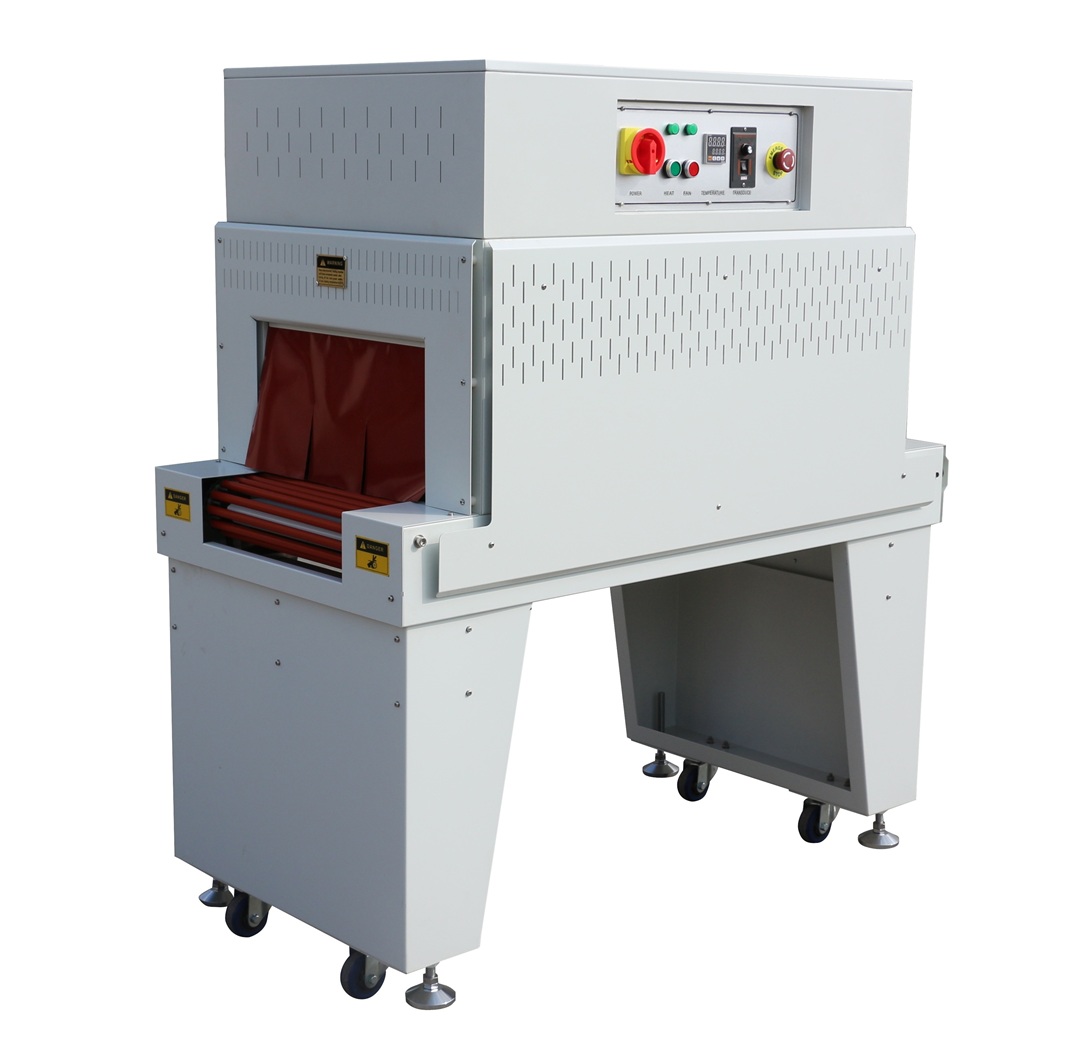

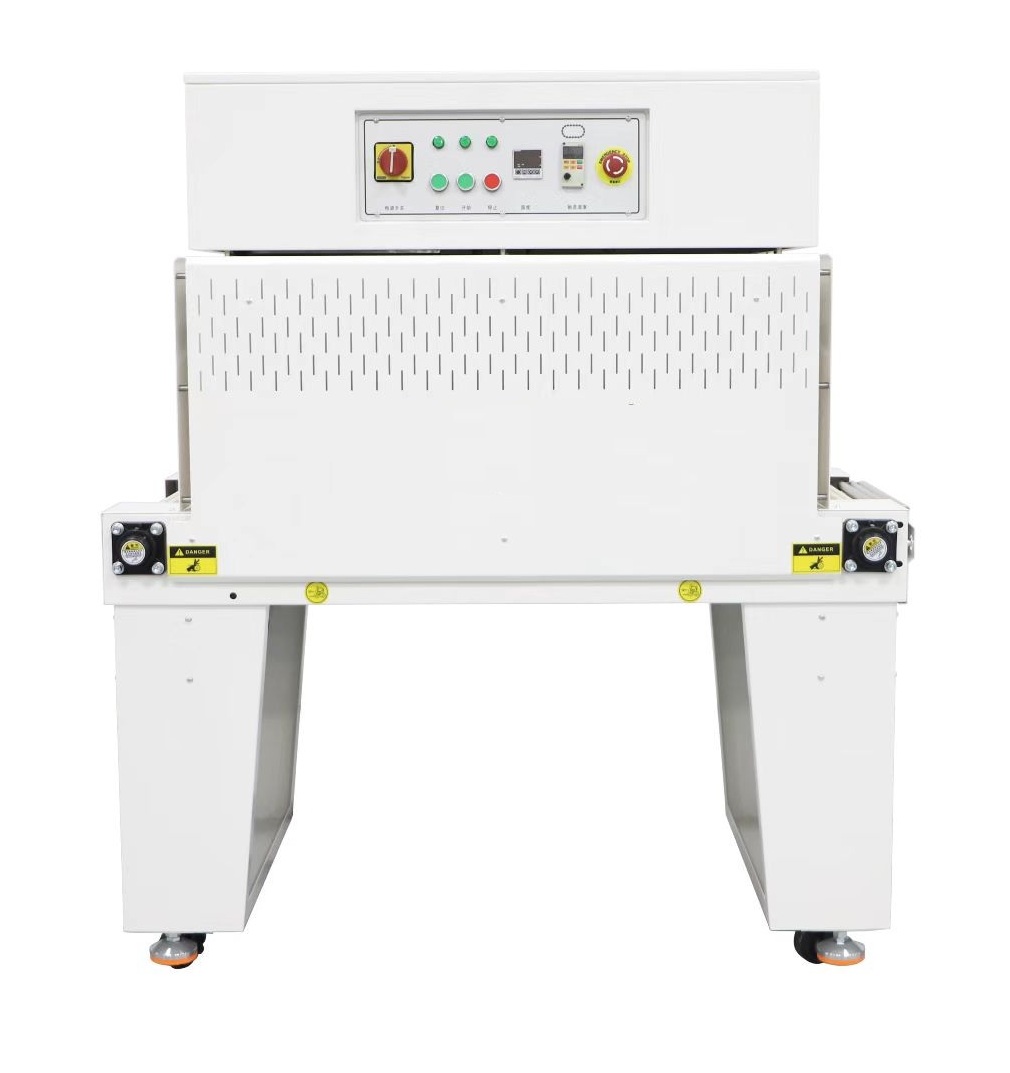

Constant Temperature Shrink Tunnel
- T4525 adopts imported heating resistant insulation curtain greatly reduces heat loss;
- Stainless steel heating elements makes heating up fast. Circulation fan motor assures large volume air transported evenly.
- Operator can adjust the conveyor speed and tunnel temperature to achieve optimum shrink appearance according to products’ sizes and output; the packaging is good sealed, anti-dust and anti-moisture,
Model | T4525 |
Power | 9kw |
Power Supply | AC 380V 3PH 50Hz |
Tunnel Chamber Size L×W×H | 1000x450x250mm |
Max. Packing Size L×W×H | 1000×300×200mm |
Shrink Temperature | 0-300℃ |
Applicable Shrink Film | POF, PVC, PET |

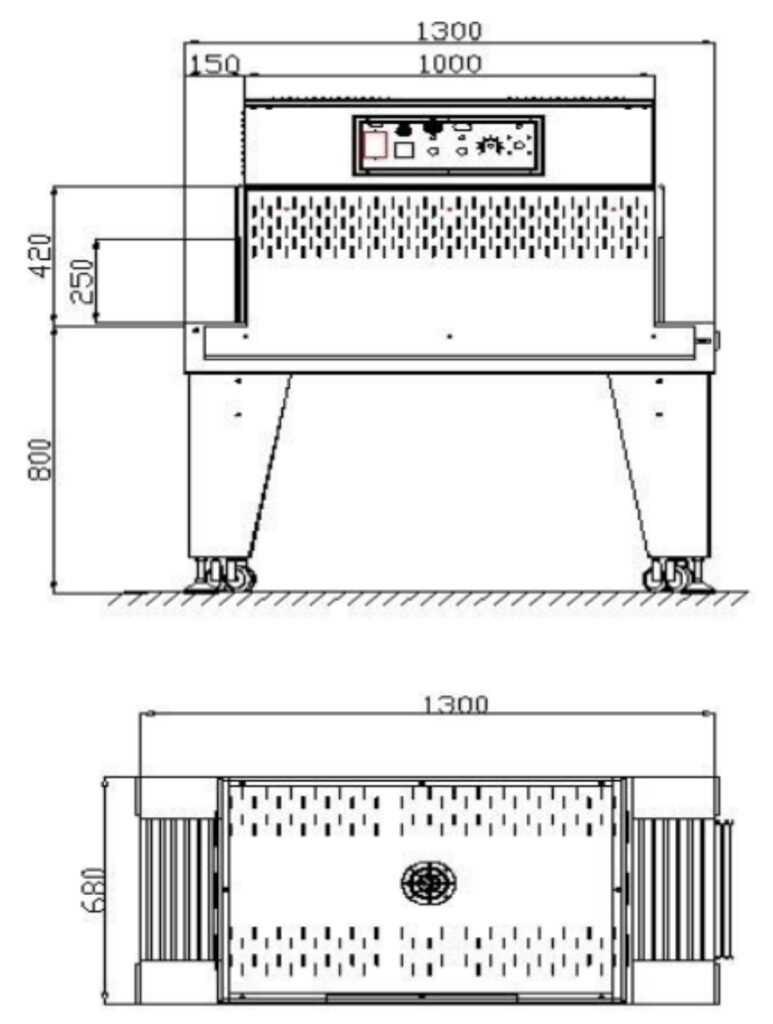

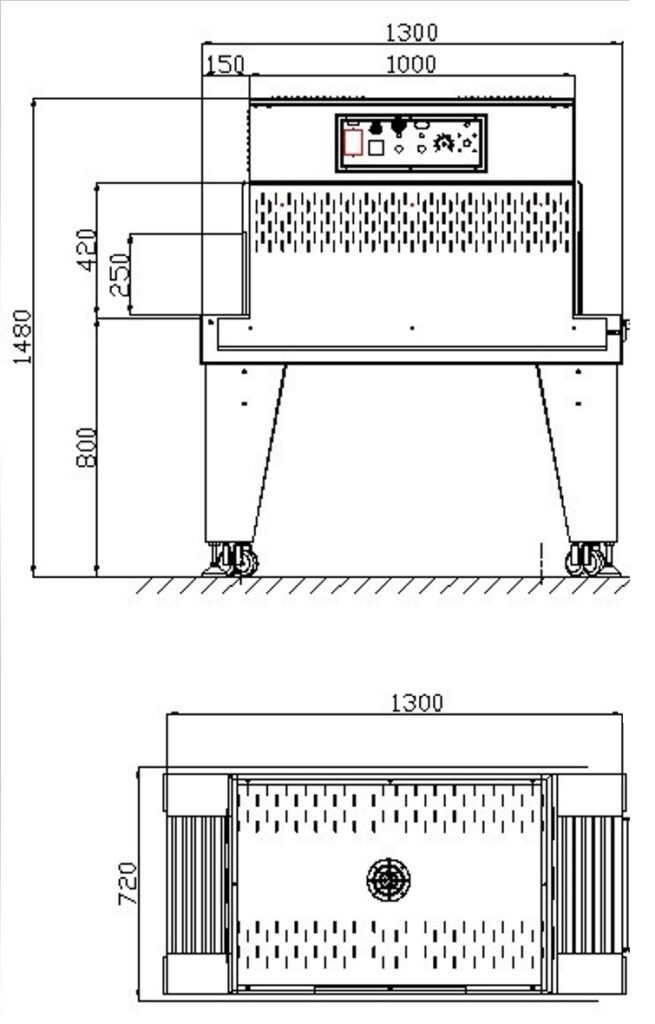

Machine Size L×W×H | 1300×720×1520mm |
Crate Size L×W×H | 1580×770×1105mm |
G./N. Weight | 240/210kgs |
- T4525 adopts imported heating resistant insulation curtain greatly reduces heat loss;
- Operator can adjust the conveyor speed and tunnel temperature to achieve optimal shrink effect according to products’ sizes and output;
- Using solid roller conveyor, external anti-high temperature silicone tube can load heavier objects and rollers will not be deformed;
- This machine adopts stainless steel 304 heating elements with automatic cooling function which greatly extendedthe machine’s life span more than three times.
- The packaging is good sealed, anti-dust and anti-moisture,
- Generally applicable to PVC, POF, PET shrink wrap film;
- The machine’s performance stable. Big power circulation motor ensures a convective hot air.
- All chain bars use solid 45 # steel and protect from external silicone tubes which can bear heavy items without film burning;
- Equipped with automatic sealer or semi-auto sealer, the operation will be more convenient.
