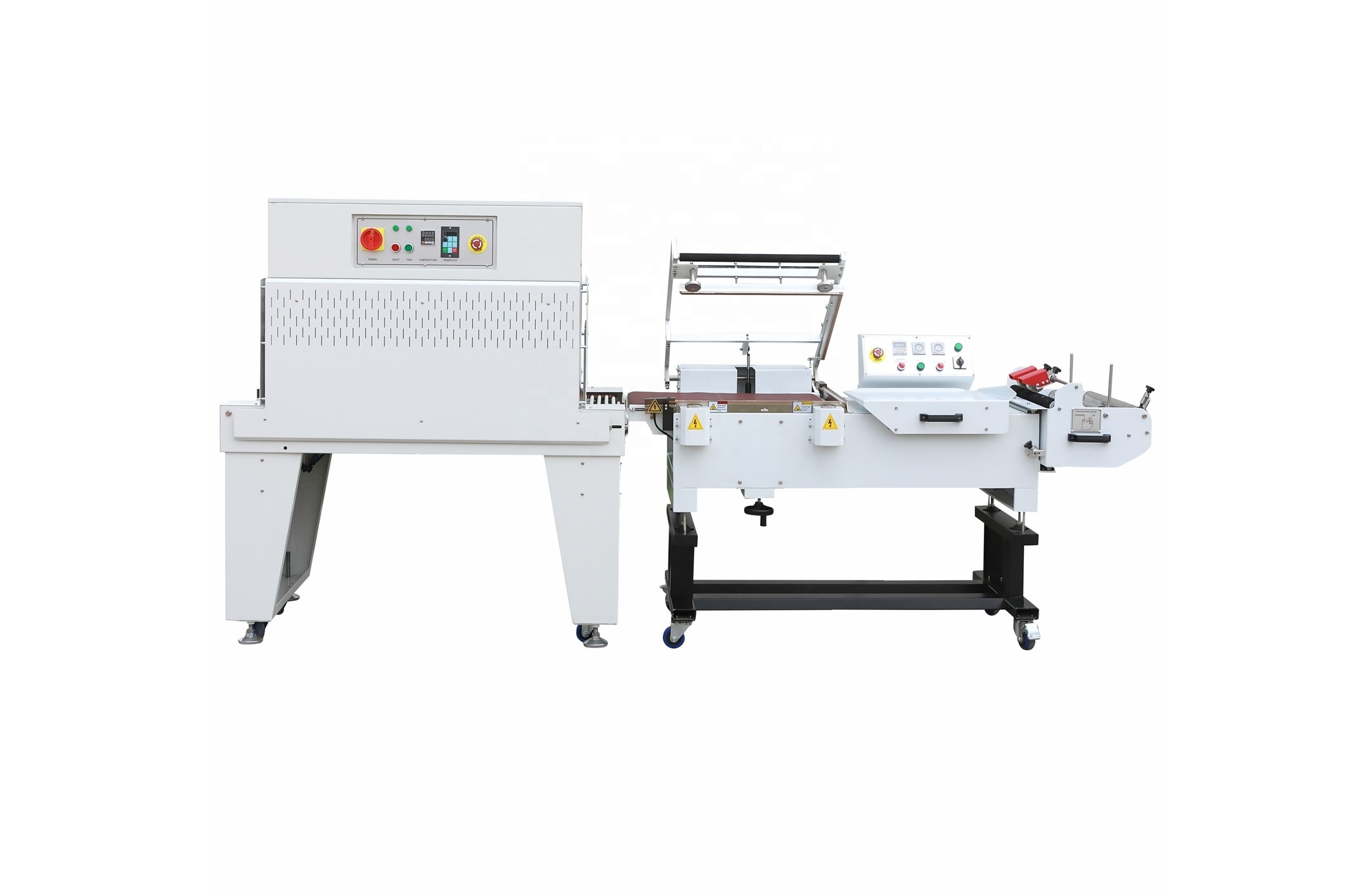

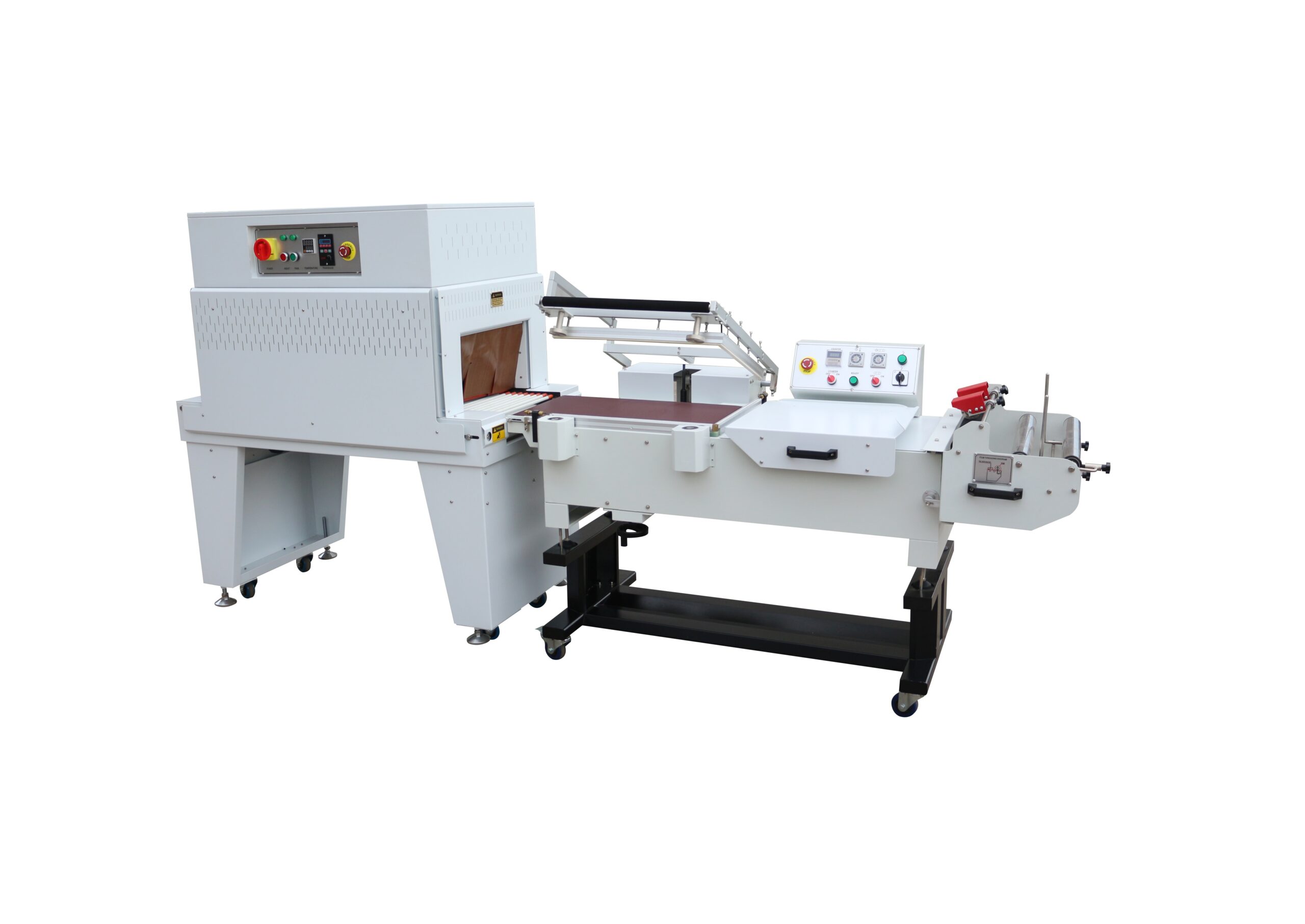

L Sealer Shrink Machine
CONTACT US

Semi Auto Sealer & Shrink Tunnel

  • This machine adopts L bar sealing, then automatically transit to the shrink chamber and finish the shrinking;
  • Anti-stick high-temperature alloys L type sealing knife which can seal neatly, without cracking, coking and smoking; The sealing blade with Teflon non-stick coating layer makeshift non-sticking.
  • It is easy to adjust the conveyor height by the hand wheel;
  • Controling the sealing time by time relay;
  • Sliding bracket can be placed all kinds of shrink film, while the punching device is smooth;

Machine Working Video

Model   MS5545T4525
Power 1kw9kw
Power SupplyAC220V 1/3PH 50/60Hz AC380V 3PH 50/60Hz
Max. Packing Size L×W×HL+H≤530mm; W+H≤430mm; H≤200mm　1000×300×200mm
Tunnel Chamber Size L×W×H/1000×450×250mm
Conveyor Height820±30mm820±30mm
Packing Speed0-15m/min.0-10m/min
Max. Loading Weight30kgs 30kgs
Shrink FilmPOF, PVCPOF, PVC

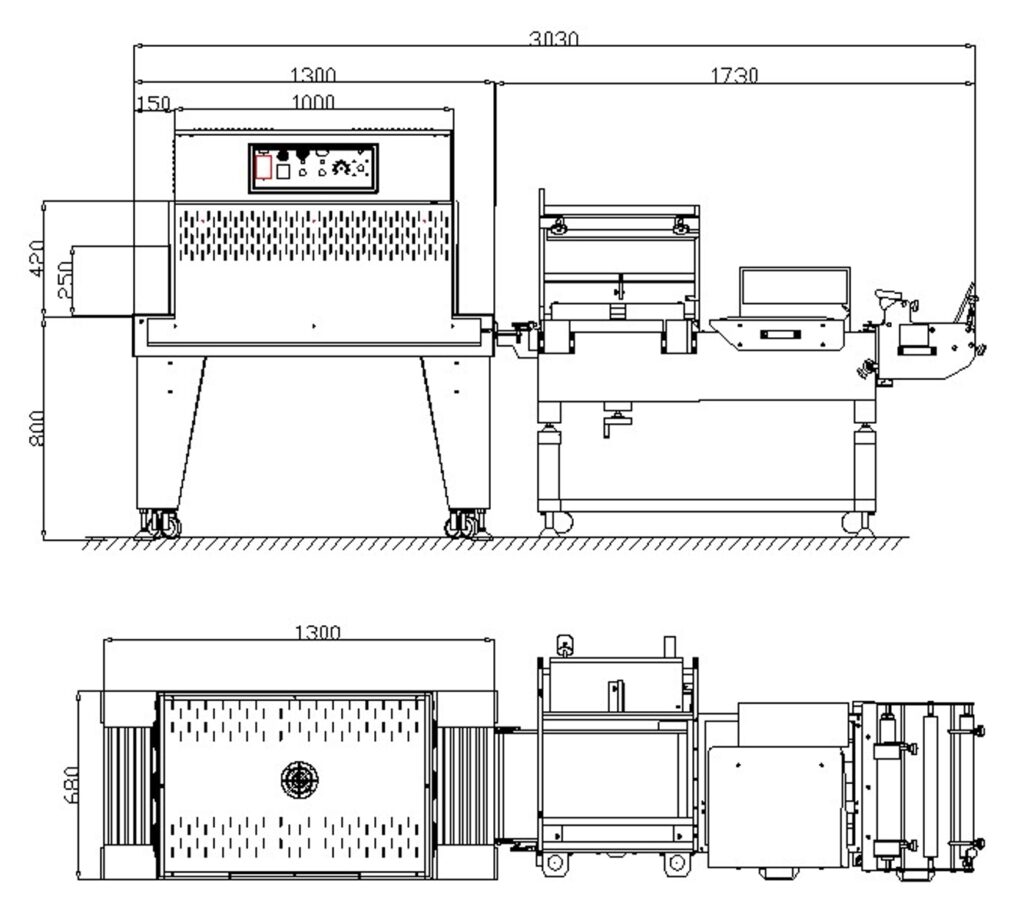

Machine Size L×W×H1730×790×980mm1300×720×1520mm
Crate Size L×W×H1780×820×1120mm1580×770×1105mm
G./N. Weight155/125kgs240/210kgs
  • This machine adopts L bar sealing, then automatically transit to the shrink chamber and finish the shrinking;
  • Anti-stick high-temperature alloys L type sealing knife which can seal neatly, without cracking, coking and smoking; The sealing blade with Teflon non-stick coating layer makeshift non-sticking.
  • It is easy to adjust the conveyor height by the hand wheel;
  • Controling the sealing time by time relay;
  • Sliding bracket can be placed all kinds of shrink film, while the punching device is smooth;
  • The whole sealing function can be automatically completed by cylinder which decreases labor intensity and increases working efficiency; (optional)
  • The sealing bar will only work if the operator presses the Two-hand sealing control device. Automatic anti–cut and anti-overheat protection device effectively protect the operator away from accidental cutting;
  • With emergency stop device in case of emergency situations can immediately stop the machine running;
  • Imported electrical components assure stable performance;
  • Imported heat – resistant insulation curtain greatly reduces heat loss
  • Stainless steel heating elements makes warming-up fast. Large power fan motor assures big wind volume and air transported uniform.
  • According to products’ sizes and output, you can adjust conveyor speed and chamber temperature to achieve optimal contraction effect;
  • Using solid roller conveyor, external anti-high temperature silicone tube can endure heavier objects and rollers will become deformed;
  • The machine is widely used in biscuits, printing products, pharmaceuticals, floors, pottery, boxes and other packaging fields which only need one operator and conveniently working.
  • The packing speed is fast and improves the working efficiency greatly which specially suits for bulk products packing;
  • Suitable for PVC, POF, PET film sealing wrapping.
