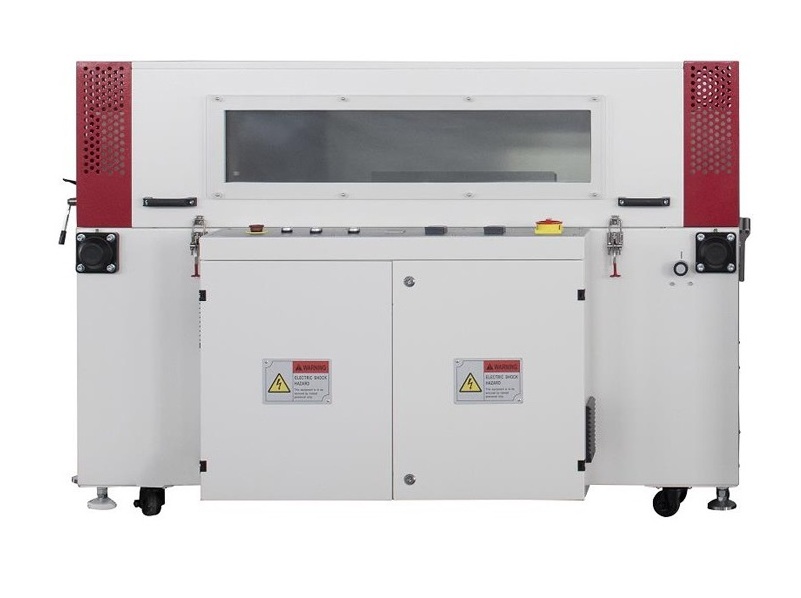

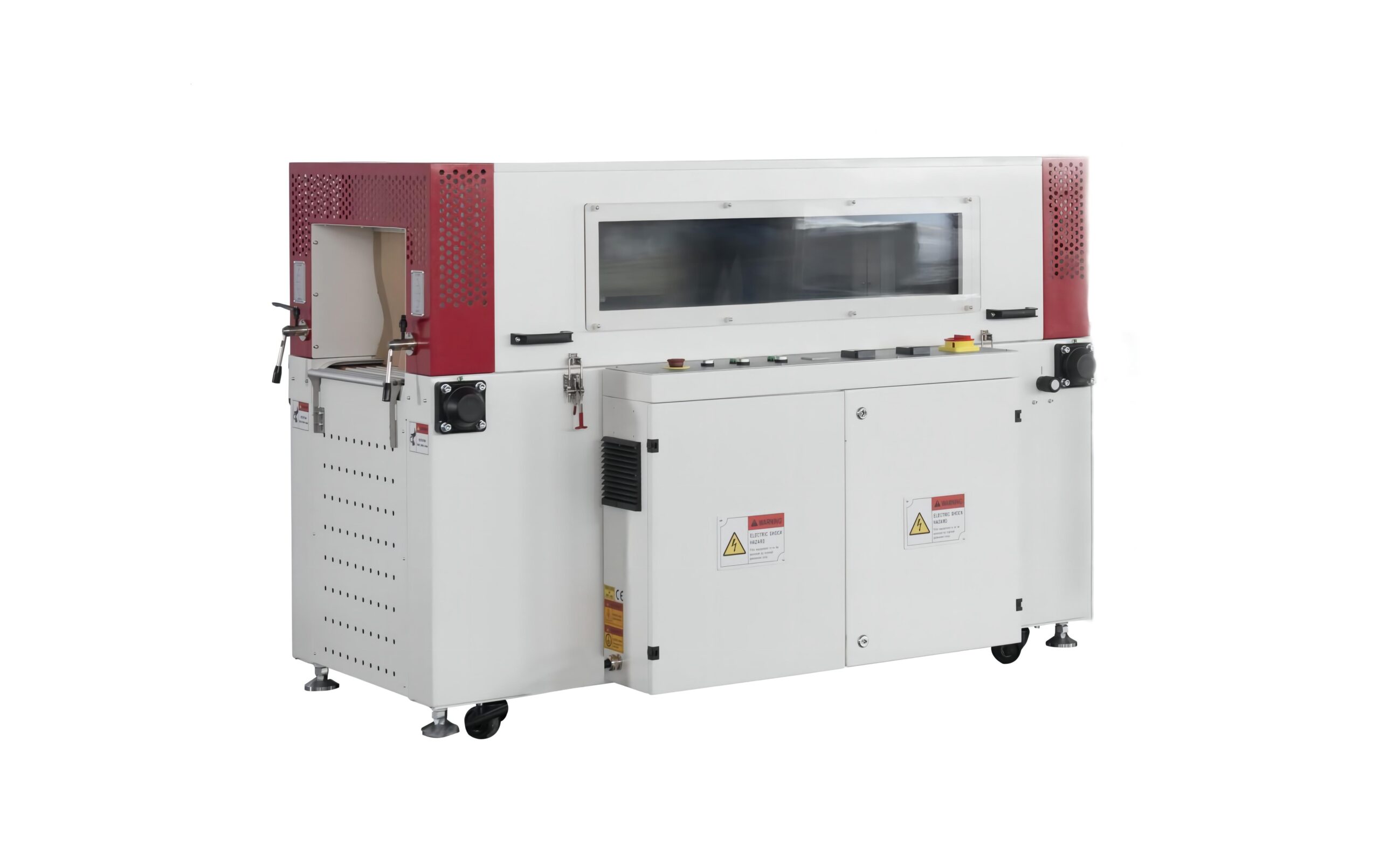

Premium Heat Shrink Tunnel
- T5030LG uses advanced circulation technology and special manufacturing. The wind orientation can be adjusted and the shrink effect is good;
- The heating elements are stainless steel which has a long life span and high energy efficiency;
- The use of French Schneider inverter controls transmission speed which has the function of infinitive speed;
- Imported insulation curtain greatly reduces the heat loss;
- The shrink temperature, conveyor speed and air volume are adjustable;
| Model | T5030LG |
| Power | 16kw |
| Power Supply | AC 380V 3PH 50Hz |
| Tunnel Chamber Size L×W×H | 1500×500×300mm |
| Packing Speed | 0-15m/min |
| Shrink Temperature | 0-300℃ |
| Conveyor Height | 825±30mm |
| Shrink Film | POF, PVC,PET |
| Machine Size L×W×H | 1860×985×1315mm |
| Crate Size L×W×H | 1910×1035×1465mm |
| G./N. Weight | 493/453kgs |
- T5030LG uses advanced circulation technology and special manufacturing. The wind orientation can be adjusted and the shrink effect is good;
- The heating elements are stainless steel which has a long life span and high energy efficiency;
- The use of French Schneider inverter controls transmission speed which has the function of infinitive speed;
- Imported insulation curtain greatly reduces the heat loss;
- The shrink temperature, conveyor speed and air volume are adjustable;
- Visual window makes the shrinking process more clear;
- The conveyor uses new types of rollers covered with durable imported fiber tubes which have the functions of anti-high temperature, wear resistance, non-film damage, non-deforming and long terms using;
- The roller can choose rotating or non-rotating to meet different shrinking requirements of different products;
- This machine applies to use POF, PVC, PET shrink film
