Sleeve Shrink Bundling Machine for Medical Boxes (Stacking & Grouping)
The BSTPACK Pharma series delivers fast, reliable shrink wrapping in a space-saving design, ideal for small pharmaceutical boxes and bottle. These machines produce open-sided (bullseye) secondary packaging and can be customized with a variety of infeed, collation, and bundling configurations. With a compact footprint and high-speed performance, this series is one of the most versatile and efficient packaging solutions available.
Machine Working Video
| Model | S5030AE | T5030E |
| Power | 1.2kw | 16kw |
| Power Supply | AC220V 1PH 50Hz | AC380V 3PH 50Hz |
| Max Packing Size L×W×H | 310×450×200mm | 1000×400×200mm |
| Tunnel Chamber Size L×W×H | / | 1300×500×300mm |
| Sealing Blade Length | 600mm | / |
| Seal/Shrink Temperature | 0-300℃ | 0-300℃ |
| Conveyor Height | 820±30mm | 820±30mm |
| Packing Speed | 0-12m/min. | Up to 15PPM |
| External Air Source | 6-8kg/cm2 | / |
| Applicable Shrink Film | PE | PE |

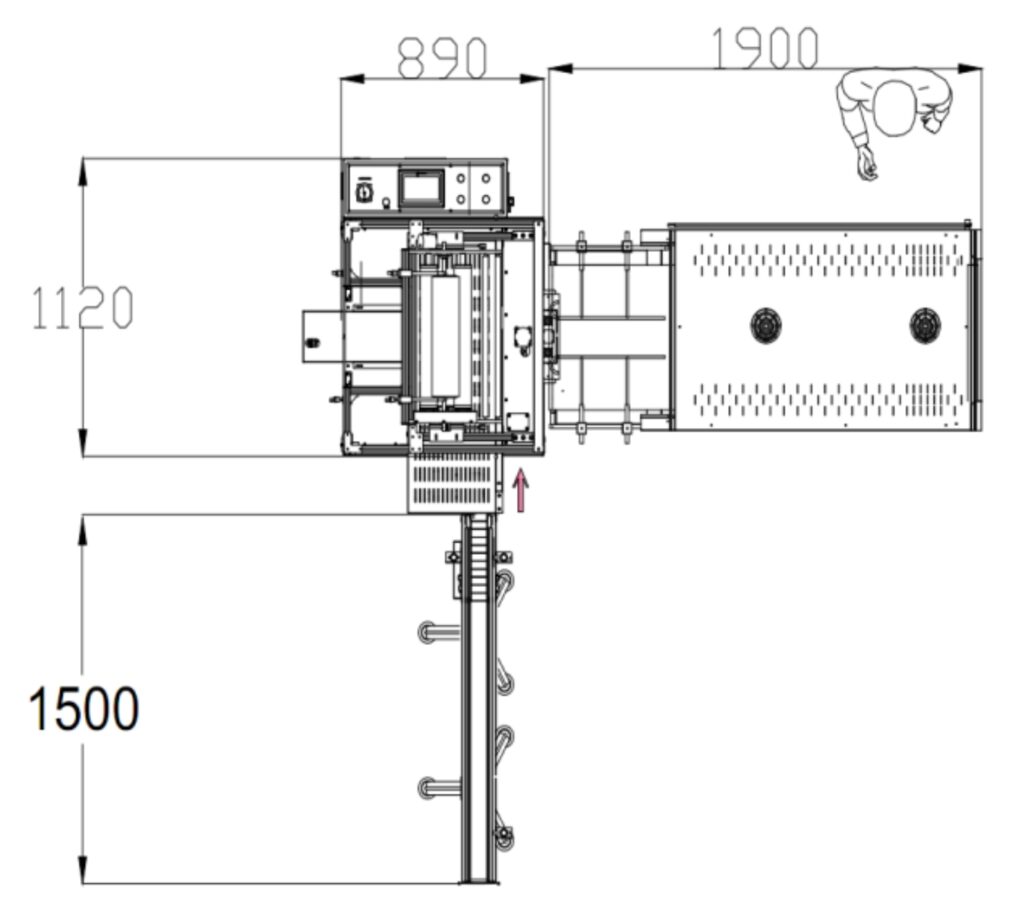

| Machine Size L×W×H | 2700x1000x1467mm | 1900x724x1650mm |
| Crate Size L×W×H | 2750x1050x1617mm | 1950x774x1800mm |
| G./N. Weight | 650kgs/590kgs | 500/450kgs |

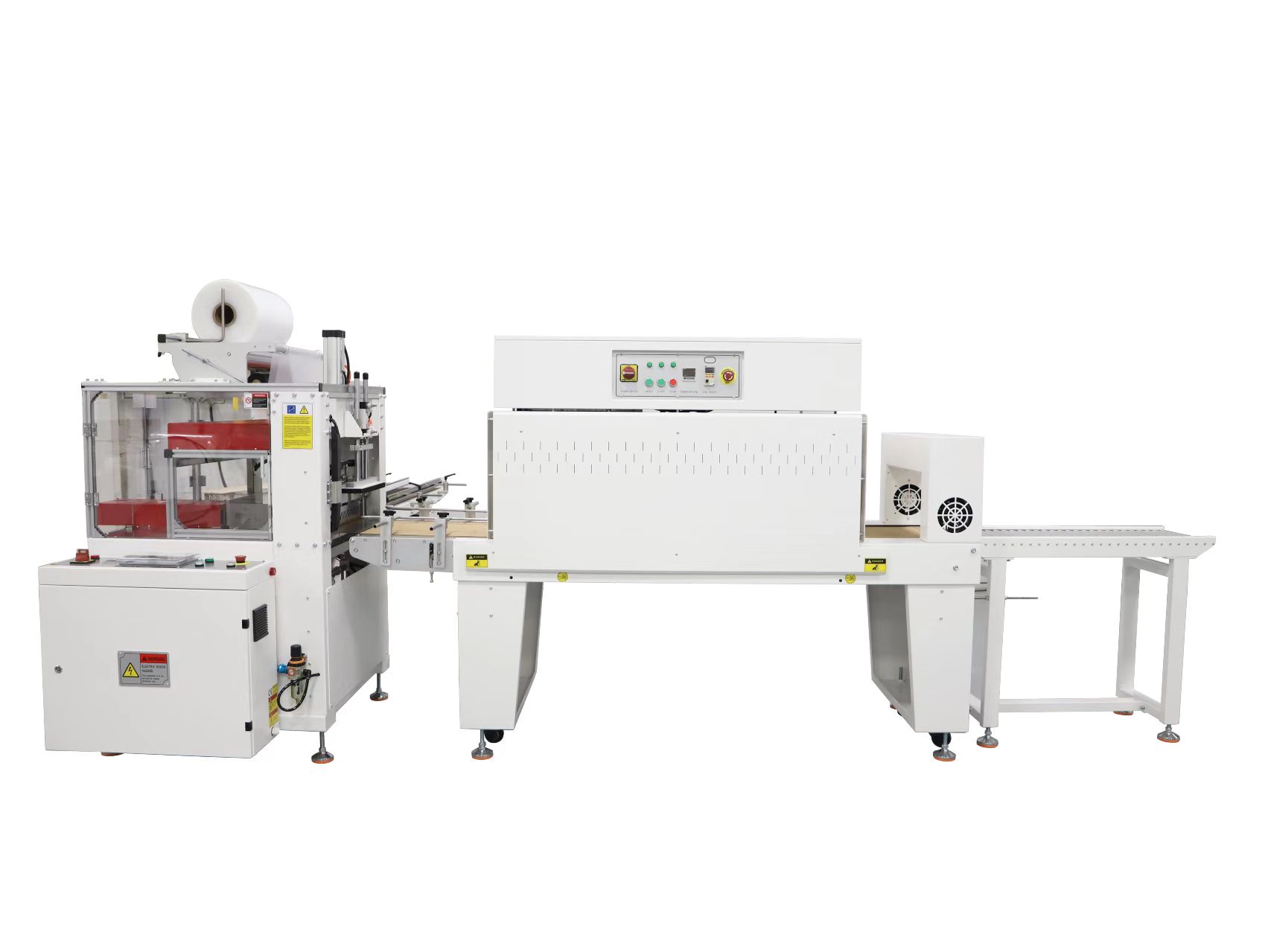

- S5030AE + T5030E is suitable for a wide range of shrink wrapping with single or multi-rows products. The automatic alignment greatly improves the production efficiency, After packaging the items have a compact and neat appearance which ensures the items’ quality and integrity of convenience transportation;
- Machine can be equipped with automatic lifting type stacking device for multi-layers packaging(option);
- S5030AE adopts international advanced manufacturing technology which is mainly designed for group sleeve packaging of boxes or bags;
- The lifting, pushing and sealing adopts Schneider servo motor and servo drive;
- The sealing blade is equipped with automatic anti-cutting protection function which effectively prevent from accidental cutting of operator’s hand or products;
- The machine is equipped with organic glass shield with automatic alarm function if the shield is opened, which greatly improves safety;
- The entire machine realizes unmanned operation which can be connect with the existing production line;
- Specially designed up and down film synchronously release mechanism to correct the distance of released film;
- The machine can be automatically arrange and sort single or double rows packaging according to production requirements without separate molds;
- The machine can be automatically arrange and sort single or double rows packaging according to production requirements without separate molds;
- The usage of Siemens PLC and HMl to achieve the integrations of mechanism, electricity and pneumatic;
- Different packing matrix can be selected on the touch screen, while the production capacity can be counted, A specially designed sealing blade with Teflon coating makes sure solid sealing line, no cracking and anti-stick. Machine can be equipped with color film positioning system (optional)
- Using imported Autonics sensors to make accurate positioning of various settingSF-5030E using imported double air circulation motors, so that the hot air in the oven can spread more evenly to get a good shrink effect;
- Tunnel adopts Teflon mesh belt conveyor which can run smoothly for small items, round bottle and cans. SF-5030Ecan add density bar roller function or Teflon conveyor belt which is specially designed for small product;
- The use of French “schneider “inverter controls transmission speed which has the function of infinitive speed; The chamber length is short which can greatly reduce the machine power; at same time it maintains good packing effect;
- Suitable for daily necessities, health care products, stationery and other collections of shrink wrapping, tobacco packaging, various other shapes multi-layer or multi-row packaging;
