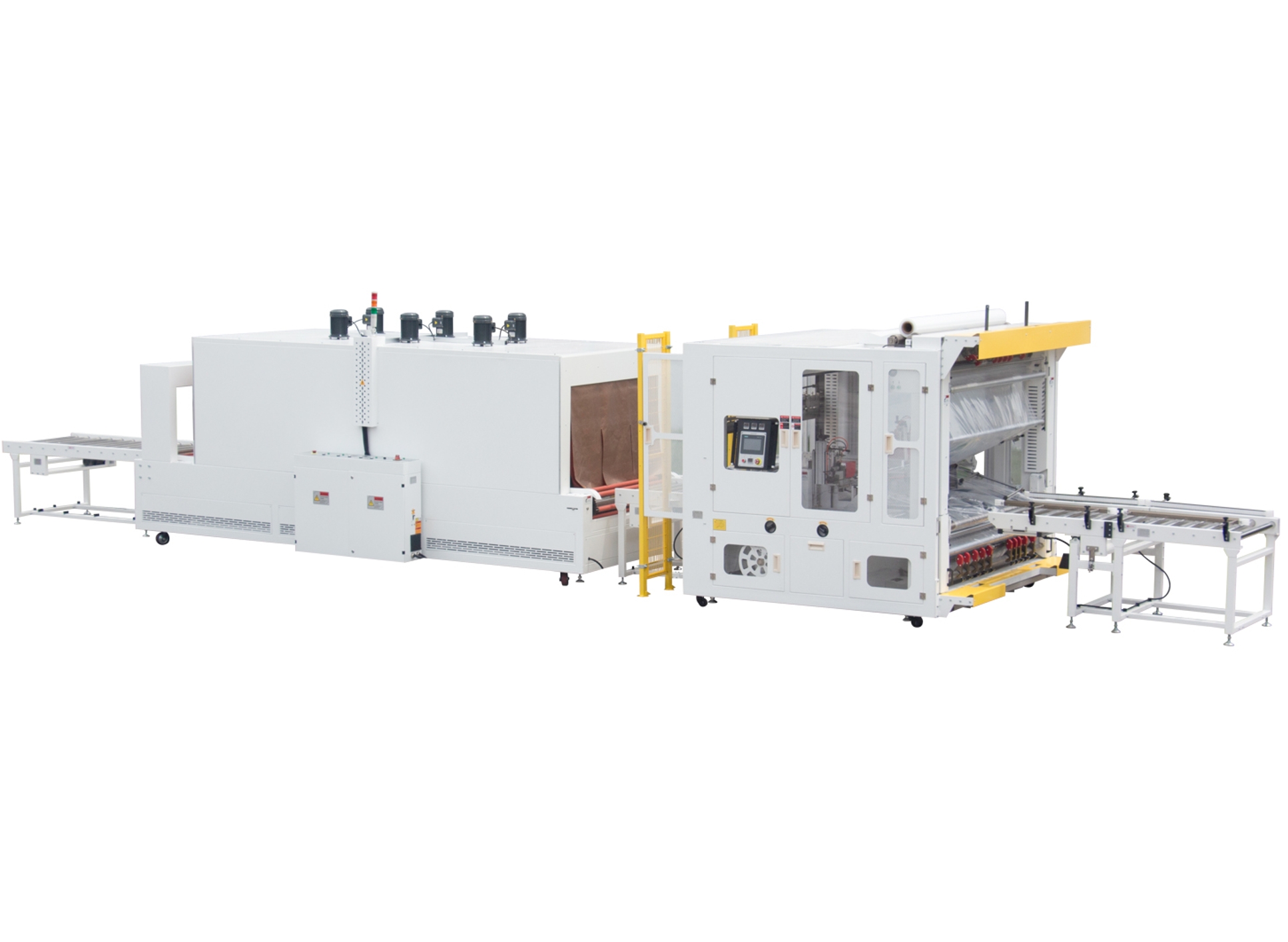

Fully-auto Double Side Sealer & Shrink Tunnel
- S6030AF Fully-auto Double Side Sealer which is developed for special big items adopts advanced high speed double-side sealing technology. It has up & down double film roll carriage. The film is in sync with the items. While the items are going forward, the side sealing system starts to seal and cut the up & down film that keeps good sealing;

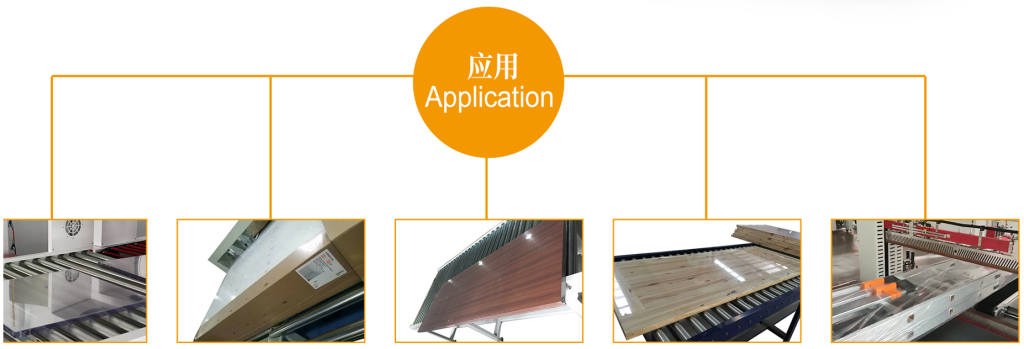

- Continuous sealing & cutting and no limits of the item length make it particularly suitable for longer, wider and heavy products’ fully-closed packaging with PE film, such as doors, furniture, ladders, mattresss and other heavy and oversized objects;
- The waste film can be winded automatically for easily clean-up;
- Side sealing lines can be adjusted to the desired position which based on the product’s height in order to achieve excellent sealing strength results;
Door Shrink Wrapping Machine Video
| Model | S6030AF (Side Sealer) | T15040E (Shrink Tunnel) |
| Power | 6 kw | 45 kw |
| Power supply | AC 220V 1PH 50Hz | AC 380V 3PH 50Hz |
| Max. Packing Size L×W×H | 500mm< W+1.5H≤1300mm, L(unlimited), H≤350mm | L≤3000mm,H≤350mm, W+1.5H≤1500mm |
| Tunnel Chamber Size L×W×H | / | 3000×1500×400mm |
| Horizontal Blade Length | 1300mm | / |
| Seal/Shrink Temperature | 0-300℃ | 0-300℃ |
| Conveyor Table Height | 820±25mm | 820±25mm |
| Packing Speed | 0-15m/min. | 0~18m/min. |
| Extra Air Source | 6-8kg/cm2 | / |
| Applicable Shrink Film | PE | PE |

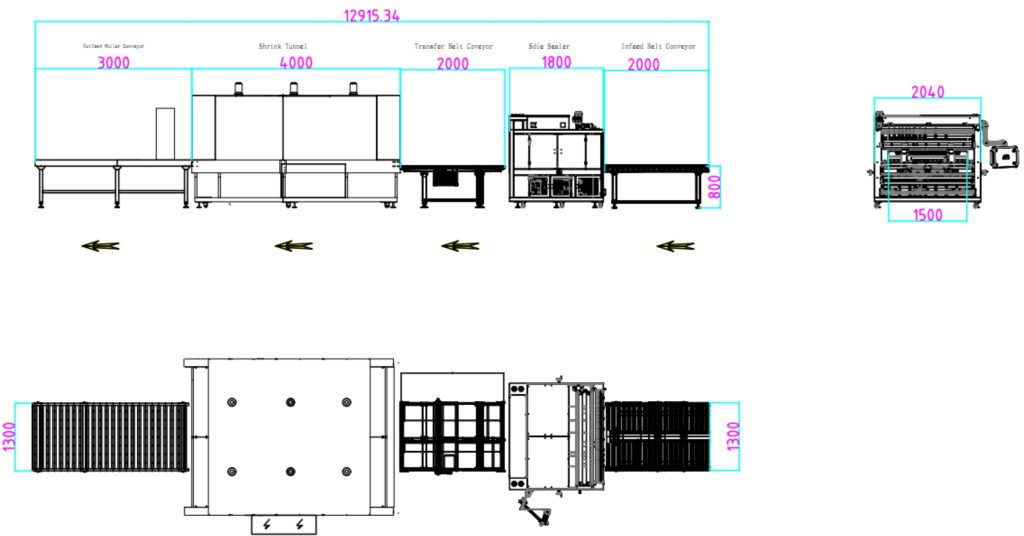

| Machine Size L×W×H | 1800×2040×2100mm | 4000×2100×1750mm |
| Crate Size L×W×H | 1850×2090×2250mm | 4050×2150×1900mm |
| G /N Weight | 1600/1500kgs | 2300/2100kgs |

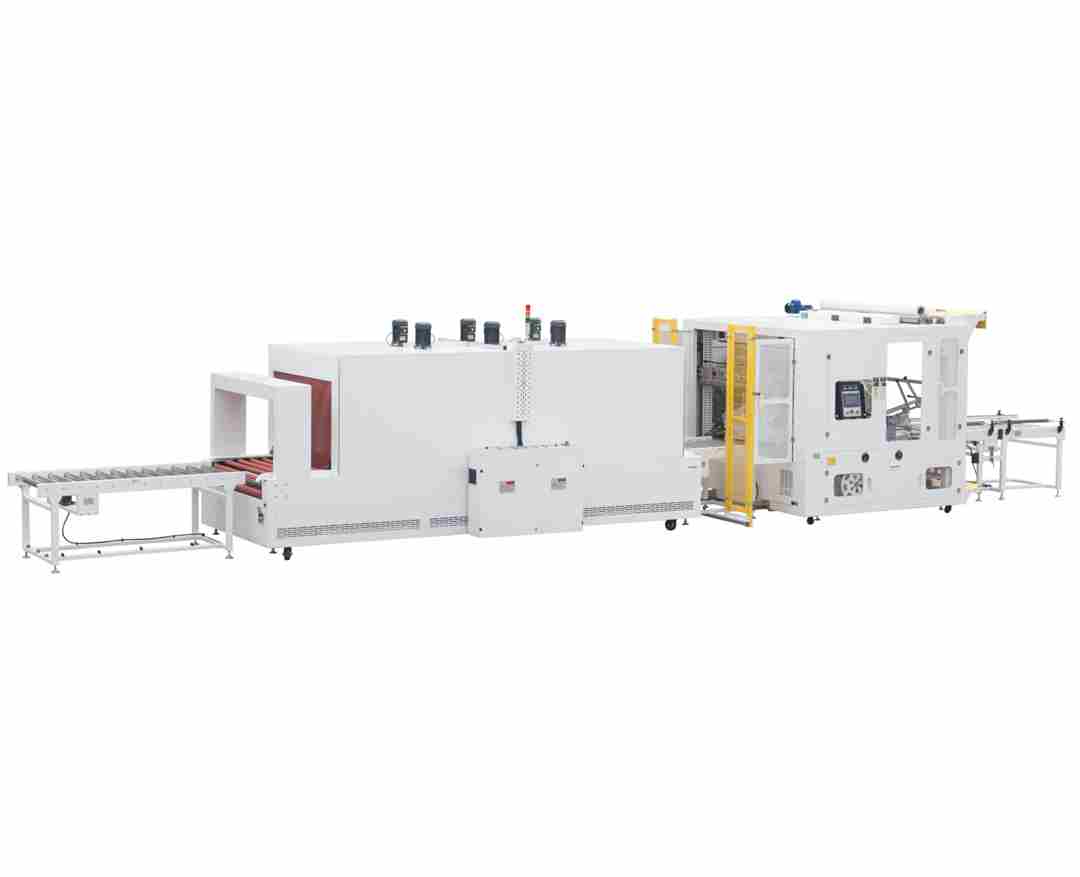

- S6030AF Fully-auto Horizontal Double Side Sealer which is developed for special big items adopts
advanced high speed double-side sealing technology. It has up & down double film roll carriage. The film is in sync with the items. While the items are going forward, the side sealing system starts to seal and cut the up & down film that keeps good sealing; - Continuous sealing & cutting and no limits of the item length make it particularly suitable for longer, wider and heavy products’ fully-closed packaging with PE film, such as doors, furniture, ladders, mattresss and other heavy and oversized objects;
- The waste film can be winded automatically for easily clean-up;
- Side sealing lines can be adjusted to the desired position which based on the product’s height in order to achieve excellent sealing strength results;
- Input & output conveyors and colored film positioning function can be equipped as per customer demand;
- Humanized touch smart operation interface is convenient for the operator to use;
- Siemens PLC program controller achieves the integrations of mechanism, electricity and pneumatic;
- Imported photo sensors to detect the horizontal and vertical section to satisfy different products’ packaging;
- The sealing blade is equipped with automatic anti-cutting protection function which effectively prevent from accidental cutting of operator’s hand or products;
- The machine is equipped with transparent safety door with automatic opening alarm function which greatly improves safety;
- The equipment will notify alarm and troubleshooting information to the operator in HMI and take further action.
- It equips with alert function when the waste film is full or the film roll is used out;
- Visual siren/light installed appropriately to let operator know the issue in the line.
- Assorted shrink tunnel T15040E uses imported double air circulation motors, so that the hot air in the oven can spread more evenly to get a good shrink effect;
- Chain bar conveying, using solid steel covered with durable imported silicone tube. T15040E can add density bar roller function which specially designed for small product;
- The use of French “Schneider “inverter controls transmission speed which has the function of infinitive speed;
- The chamber length is short which can greatly reduce the machine power; at same time it maintains good packing effect;
- Applicable shrink film: PE;
- For beverage, chemical, building material, food packing with or without paper tray. And the tunnel can be used for electrical appliances, auto parts, furniture, flooring and other individual or group sealing and shrink wrap.
